A 12V battery does not always read exactly 12.00 volts. A fully charged 12V lead-acid battery is usually around 12.7V at rest, while a 12V LiFePO4 battery may read around 13.4V–13.6V. To judge battery condition correctly, always compare the voltage with the right battery chemistry and measure after the battery has rested with no charging or load.

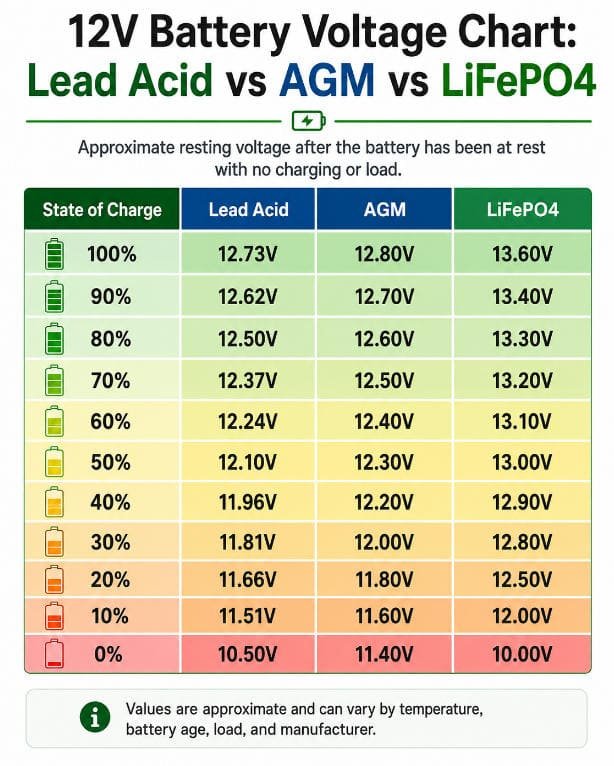

12V Battery Voltage Chart by Battery Type
Different 12V batteries have different voltage ranges. Lead-acid, AGM and LiFePO4 batteries may all be called “12V batteries,” but their resting voltages are not the same. This is why using the wrong chart can lead to a wrong estimate of the battery’s state of charge.
| State of Charge | Lead Acid | AGM | LiFePO4 |
|---|---|---|---|
| 100% | 12.73V | 12.80V | 13.60V |
| 90% | 12.62V | 12.70V | 13.40V |
| 80% | 12.50V | 12.60V | 13.30V |
| 70% | 12.37V | 12.50V | 13.20V |
| 60% | 12.24V | 12.40V | 13.10V |
| 50% | 12.10V | 12.30V | 13.00V |
| 40% | 11.96V | 12.20V | 12.90V |
| 30% | 11.81V | 12.00V | 12.80V |
| 20% | 11.66V | 11.80V | 12.50V |
| 10% | 11.51V | 11.60V | 12.00V |
| 0% | 10.50V | 11.40V | 10.00V |
These values are approximate resting voltages. They can change with temperature, battery age, load, charging condition and manufacturer settings. For project buyers comparing lithium battery options, working with a LiFePO4 battery manufacturer can help confirm the correct voltage range for the actual battery design.

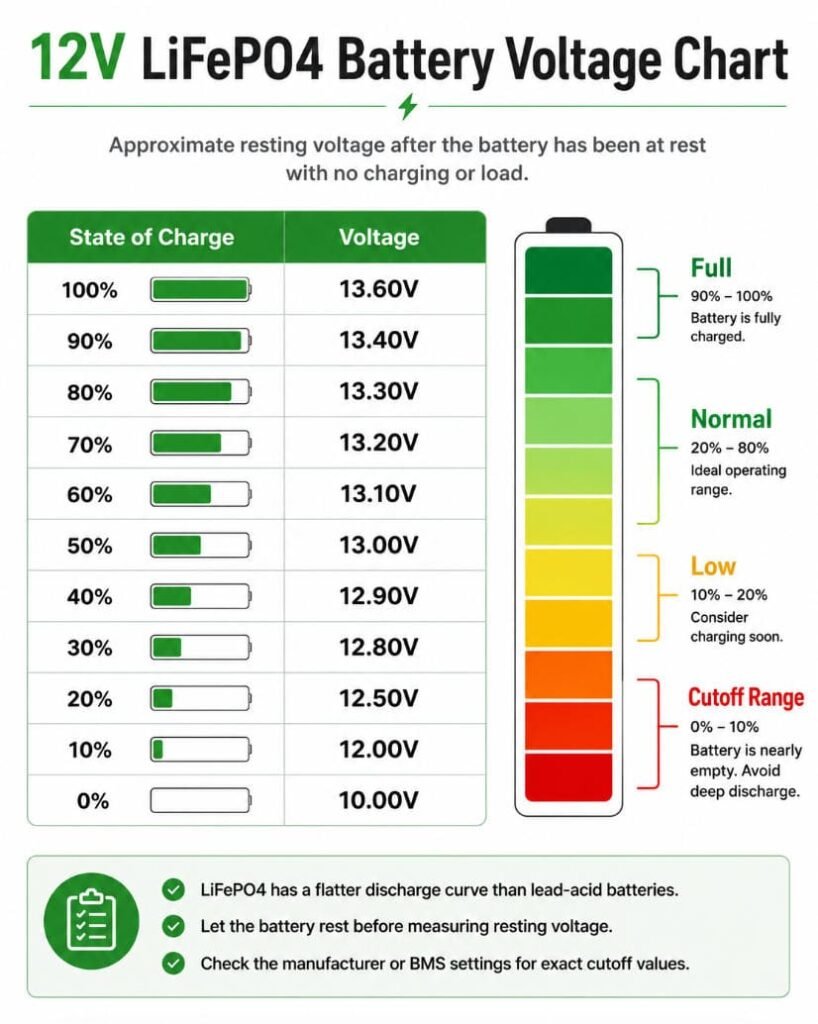

12V LiFePO4 Battery Voltage Chart

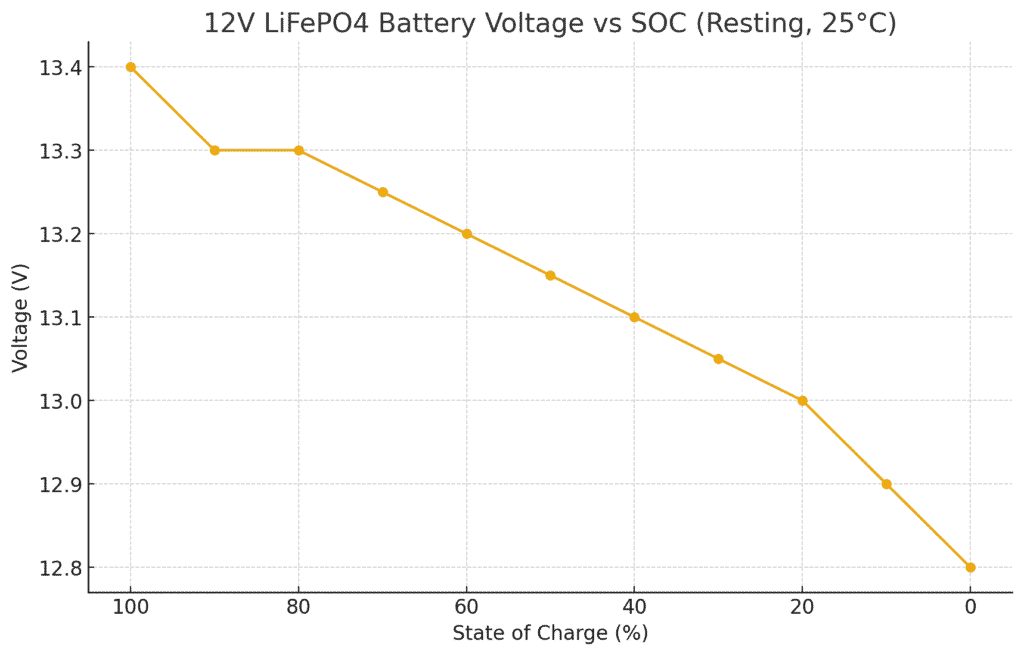

LiFePO4 batteries have a flatter discharge curve than lead-acid batteries. This means the voltage may stay relatively stable through much of the discharge process, then drop faster near the lower end. Because of this, voltage alone may not show the exact remaining capacity as clearly as it does with some lead-acid batteries.
| State of Charge | 12V LiFePO4 Resting Voltage |
|---|---|
| 100% | 13.60V |
| 90% | 13.40V |
| 80% | 13.30V |
| 70% | 13.20V |
| 60% | 13.10V |
| 50% | 13.00V |
| 40% | 12.90V |
| 30% | 12.80V |
| 20% | 12.50V |
| 10% | 12.00V |
| 0% | 10.00V |
A 12V LiFePO4 battery may still show around 13.0V at about 50% state of charge. This is normal for lithium iron phosphate chemistry. For RV, marine and solar storage projects, buyers often choose LiFePO4 because it offers stable voltage output, long cycle life and lighter weight compared with traditional lead-acid batteries. If your project uses a 12V system, you may also compare the requirements for an RV lithium battery or a marine lithium battery before choosing the final battery pack.
What Does 12V Battery Voltage Tell You?
Battery voltage gives a quick indication of charge condition, but it should not be treated as the only measurement.

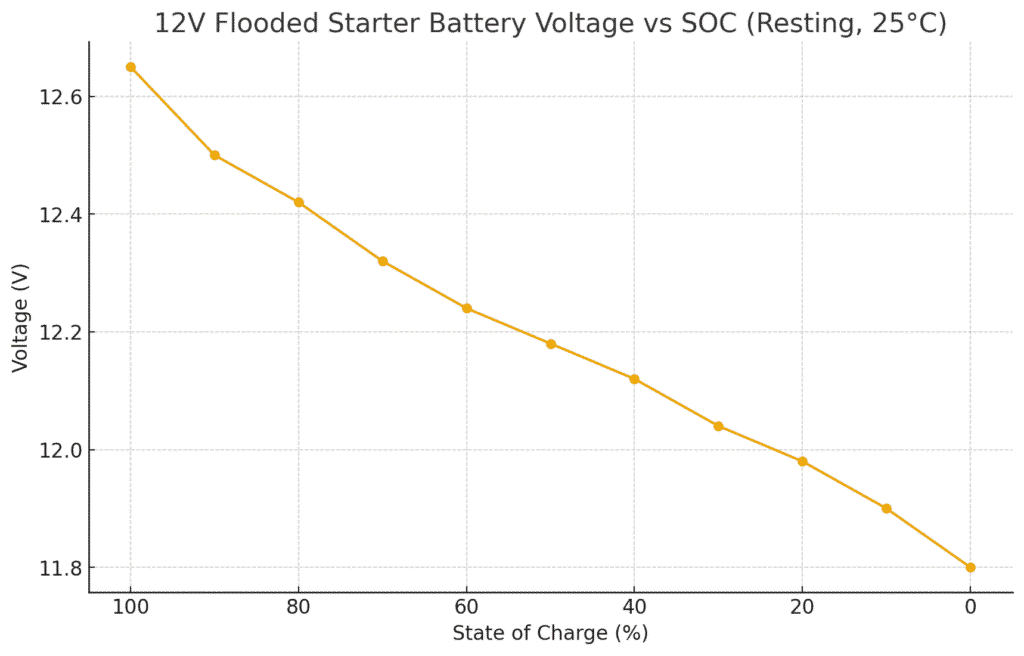

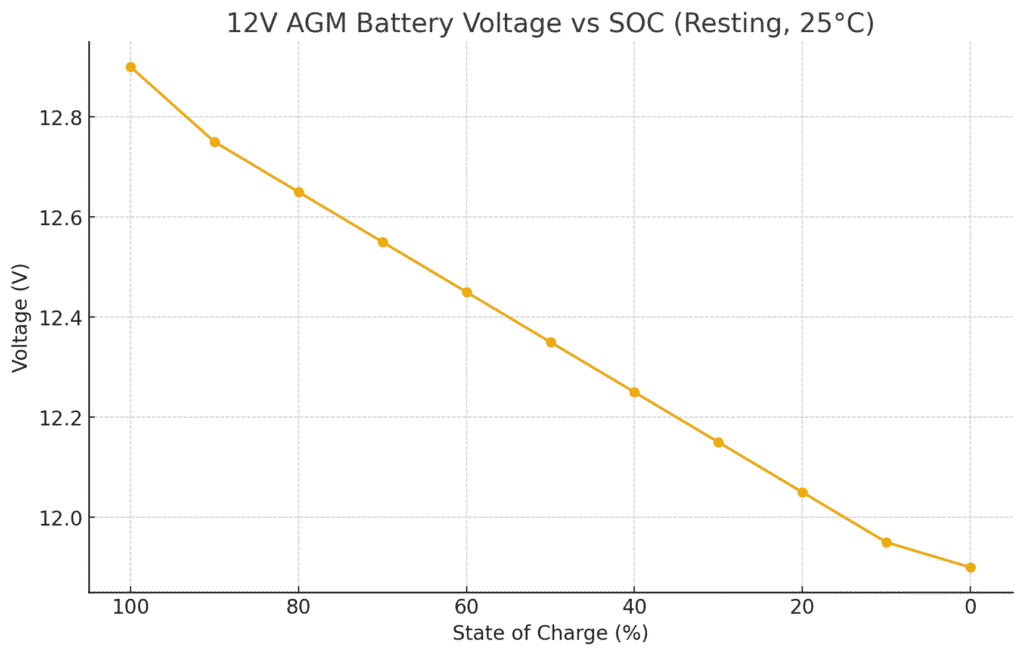

A fully charged 12V lead-acid battery is usually around 12.7V to 12.8V at rest. If it reads near 12.4V, it may already be partially discharged. Around 12.1V is often near 50% for many flooded lead-acid batteries, while AGM batteries may read slightly higher.
LiFePO4 is different. A 12V LiFePO4 battery can show higher voltage than a lead-acid battery at the same state of charge. It may also keep a stable voltage for a longer time during use. This is one reason why many lithium systems also rely on BMS data, coulomb counting or battery monitors instead of voltage alone.
Also remember that a “12V battery” is a nominal name. It does not mean the battery should always read exactly 12.00V. In the same way, users often ask whether a car battery is AC or DC. For that topic, you can read more about is a car battery AC or DC.
How to Measure 12V Battery Voltage Correctly
To compare your reading with a voltage chart, the battery should be measured under the right conditions.
First, stop charging the battery and disconnect heavy loads. If the battery was just charged, the surface voltage may be higher than the true resting voltage. If the battery was under load, the reading may be lower than its normal resting value.
Second, let the battery rest. For lead-acid batteries, a longer rest period gives a more reliable reading. For LiFePO4 batteries, resting also helps you avoid judging the battery during temporary voltage changes.
Third, use a multimeter and set it to DC voltage mode. Batteries store and supply DC power, so the meter must be set correctly. If you are not sure about the difference between AC and DC, see AC vs DC power.
Finally, compare the result with the correct chart. Do not use a lead-acid chart to judge a LiFePO4 battery, and do not use a LiFePO4 chart to judge an AGM battery.
Why Your Voltage Reading May Look Different
It is normal for your battery voltage to look different from the chart in real use. A chart usually shows approximate resting voltage, while real systems often have charging, loads, temperature changes and battery aging.
Voltage under load is usually lower than resting voltage. For example, when an inverter, motor, pump or appliance starts, the battery voltage may drop temporarily. This does not always mean the battery is bad.
Charging voltage is usually higher than resting voltage. A 12V battery connected to a charger, alternator or solar charge controller may show a higher number than the chart. That number reflects the charging process, not the resting state of charge.
Temperature also matters. Cold conditions can reduce battery performance and may affect the voltage reading. Old batteries may show normal voltage after charging but drop quickly under load because they can no longer hold capacity well.
For LiFePO4 batteries, the BMS can also influence what you see. If the battery reaches a protection limit, the BMS may cut off output to protect the cells. In this situation, voltage readings alone may not explain the full problem. Always check the battery manual, BMS status and charger compatibility.
Choosing a 12V Battery for Real Applications
A voltage chart is useful, but it is only the first step in battery selection. For a real project, buyers also need to confirm capacity, cycle life, discharge current, charging method, BMS protection, enclosure design, installation space and operating environment.
An RV battery may need stable power for appliances and off-grid travel. A marine battery must handle vibration, moisture and limited installation space. A golf cart battery pack may require higher discharge current and strong BMS protection. Home energy storage systems may need scalable capacity, inverter compatibility and safer long-term operation.
That is why project buyers should not choose a battery only by voltage. They should match the battery system to the application. For example, a golf cart lithium battery has different requirements from a powerwall battery used for home energy storage. If you are comparing home backup capacity, you may also read how much home battery storage do I need.
For custom battery projects, confirm the voltage, capacity, BMS, charging system and installation requirements before production. If you need technical support, you can contact Saftec for a tailored LiFePO4 battery solution.
FAQ About 12V Battery Voltage
What should a 12V battery read when fully charged?
A fully charged 12V lead-acid battery usually reads around 12.7V to 12.8V at rest. A 12V LiFePO4 battery may read around 13.4V to 13.6V. The exact value depends on battery chemistry, temperature, charger settings and manufacturer design.
What voltage is 50% of a 12V battery?

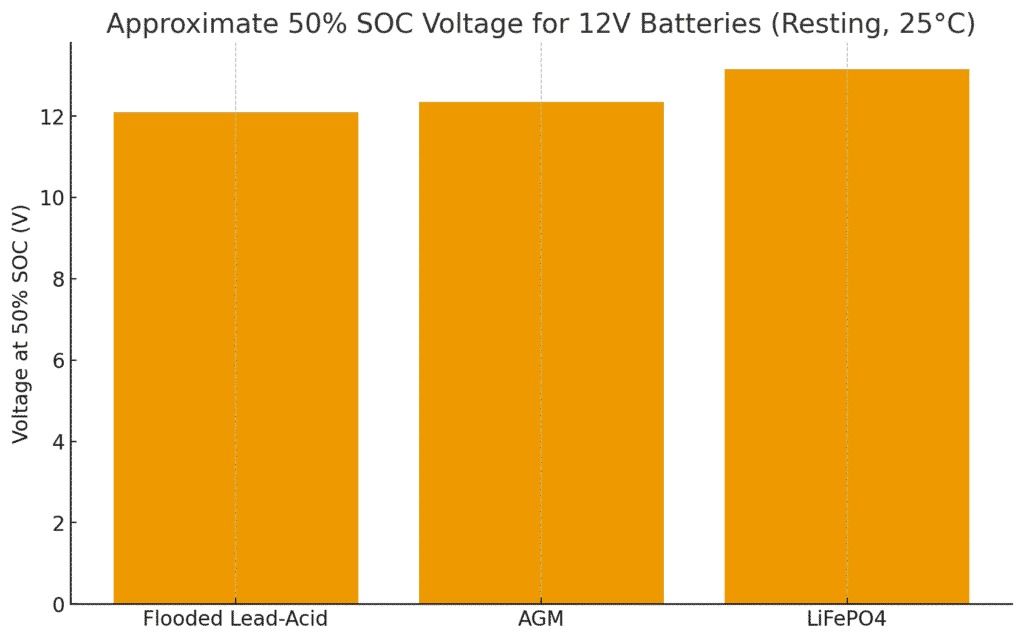

For many lead-acid batteries, around 12.1V may indicate about 50% state of charge at rest. AGM batteries may be closer to 12.3V, while 12V LiFePO4 batteries may still read around 13.0V at about 50%.
Is 12.7V good for a 12V battery?
For a lead-acid battery at rest, 12.7V is usually a good sign and may indicate a full or nearly full charge. For LiFePO4, 12.7V may not mean the same thing because lithium batteries use a different voltage curve.
Why is LiFePO4 voltage higher than lead-acid?
LiFePO4 batteries use different cell chemistry and have a different nominal cell voltage. A 12V LiFePO4 battery pack is usually made from four cells in series, so its full resting voltage is higher than many 12V lead-acid batteries.
Can voltage alone show exact battery capacity?
No. Voltage can provide a useful estimate, but it cannot always show exact remaining capacity. Load, temperature, battery age, recent charging and BMS behavior can all affect the reading. For better accuracy, use voltage together with a battery monitor or BMS data.
