LiFePO4 batteries look “simple” from the outside, but their voltage behaves very differently from lead-acid. If you misread the voltage, you can easily think a pack is empty when it’s still 60% full—or worse, push it above safe limits and shorten its life.
This guide walks through LiFePO4 voltage charts and SOC (state of charge) for 3.2V cells and 12V / 24V / 48V packs, then shows how to use them in real systems (solar, RV, marine, backup power). All values are typical ranges, not absolute rules—always follow your BMS and cell manufacturer first.
What Is a LiFePO4 Voltage Chart and Why Does It Matter?
A LiFePO4 voltage chart maps the relationship between:
- Battery voltage (V) – open-circuit voltage measured at the terminals
- State of charge (SOC, %) – how “full” the battery is, from 0% to 100%
You need this chart because:
- LiFePO4 voltage is very flat in the middle (around 20–80% SOC), so a single reading can be misleading.
- The safe operating window is narrow: go too low → BMS cutoff / capacity loss; go too high → lithium plating, swelling, early failure.
- Charge controllers, inverters and BMS settings are all based on cell and pack voltages.
How to read charts correctly
- Measure resting voltage (no charge or load for at least 30–60 minutes).
- Compare with a LiFePO4-specific chart, not a lead-acid table.
- Treat values as approximate bands, not exact numbers down to 0.01V.
LiFePO4 Cell Voltage Chart (3.2V Nominal Cell)
A single LiFePO4 cell has a nominal voltage of 3.2V. Full and empty are approximately:
- 100% SOC (full): 3.45–3.55V resting (up to 3.65V at the very end of charging)
- 0–5% SOC (empty): 2.5–2.8V resting (most BMS will cut off before 2.5V)
Typical 3.2V LiFePO4 cell voltage vs SOC (resting, 25°C):
| SOC (%) | Approx. Cell Voltage (V) | Notes |
|---|---|---|
| 100% | 3.45–3.50 | Just settled after full charge |
| 90% | 3.40–3.43 | Top of the flat region |
| 80% | 3.37–3.40 | Healthy daily upper limit |
| 70% | 3.34–3.37 | Still near “full” in practical use |
| 60% | 3.31–3.34 | Middle of the plateau |
| 50% | 3.28–3.31 | “Half full” but voltage barely changed |
| 40% | 3.25–3.28 | Start of gentle drop |
| 30% | 3.22–3.25 | Good point to think about recharging |
| 20% | 3.18–3.22 | Getting low; avoid staying here long |
| 10% | 3.10–3.18 | Near BMS low-voltage cutoff region |
| 0–5% | 2.5–3.10 | Very low; risk of degradation if repeated |
Because the curve is so flat from ~20–80%, small voltage errors can mean big SOC errors. For critical applications, combine voltage with coulomb counting (current integration) from a BMS.
12V LiFePO4 Battery Voltage Chart and SOC Table
A “12V LiFePO4 battery” is normally 4 cells in series (4S) with:
- Nominal voltage ≈ 12.8V (4 × 3.2V)
- Typical usable range ≈ 10.8–13.4V resting

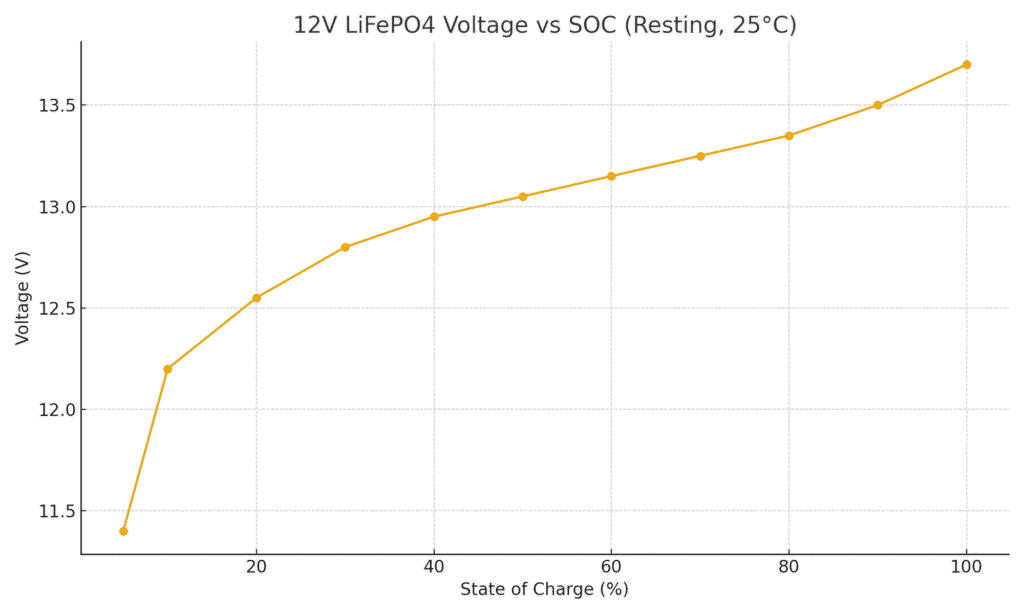

12V LiFePO4 voltage chart (resting, 25°C)
| SOC (%) | Approx. Pack Voltage (V) | Comment |
|---|---|---|
| 100% | 13.6–13.8 | Right after full charge; will settle slightly lower |
| 90% | 13.4–13.6 | Very full; top of plateau |
| 80% | 13.3–13.4 | Good “daily full” target for long life |
| 70% | 13.2–13.3 | Still considered a full battery in use |
| 60% | 13.1–13.2 | Middle of the flat region |
| 50% | 13.0–13.1 | “Half” but voltage is barely lower |
| 40% | 12.9–13.0 | Start of mild slope |
| 30% | 12.7–12.9 | Plan to recharge soon |
| 20% | 12.4–12.7 | Low; don’t sit here for days |
| 10% | 12.0–12.4 | Very low; BMS cutoff is near |
| 0–5% | 10.8–12.0 | Around controller/BMS low-voltage cutoff |
Tip: On a 12V LiFePO4, voltages between 12.9–13.2V all correspond to roughly 40–70% SOC. Don’t try to over-interpret tiny differences, especially under load.
Use this 12V LiFePO4 voltage chart for:
- RV house batteries
- Small off-grid solar banks
- Trolling motors and small marine systems
- Portable power stations that expose pack voltage
24V & 48V LiFePO4 Voltage Charts for Series Packs
For higher-voltage systems, manufacturers simply connect cells in series:
- 24V LiFePO4: 8S (8 × 3.2V) → 25.6V nominal
- 48V LiFePO4: 16S (16 × 3.2V) → 51.2V nominal
The SOC vs voltage shape is the same; the numbers are scaled.

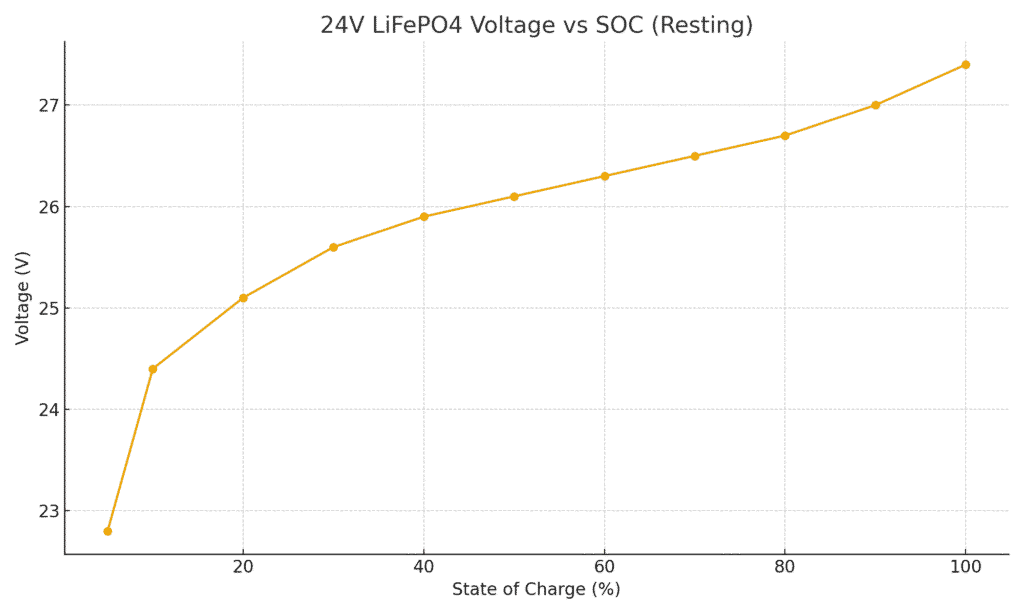

24V LiFePO4 voltage chart (resting)
| SOC (%) | Approx. Voltage (V) |
|---|---|
| 100% | 27.2–27.6 |
| 90% | 26.8–27.2 |
| 80% | 26.6–26.8 |
| 70% | 26.4–26.6 |
| 60% | 26.2–26.4 |
| 50% | 26.0–26.2 |
| 40% | 25.8–26.0 |
| 30% | 25.4–25.8 |
| 20% | 24.8–25.4 |
| 10% | 24.0–24.8 |
| 0–5% | 21.6–24.0 |
48V LiFePO4 voltage chart (resting)
| SOC (%) | Approx. Voltage (V) |
|---|---|
| 100% | 54.4–55.2 |
| 90% | 53.6–54.4 |
| 80% | 53.2–53.6 |
| 70% | 52.8–53.2 |
| 60% | 52.4–52.8 |
| 50% | 52.0–52.4 |
| 40% | 51.6–52.0 |
| 30% | 50.8–51.6 |
| 20% | 49.6–50.8 |
| 10% | 48.0–49.6 |
| 0–5% | 43.2–48.0 |
These ranges are useful for:
- 24V LiFePO4 voltage chart: mid-size RVs, marine, golf carts, forklifts, small off-grid cabins
- 48V LiFePO4 voltage chart: home storage batteries, larger solar off-grid, telecom backup, golf carts and utility vehicles
What Are the Nominal, Minimum and Maximum Voltages for LiFePO4?
To avoid confusion, separate three concepts:
| Level | Per-Cell (V) | 12V Pack (4S) | 24V Pack (8S) | 48V Pack (16S) | Notes |
|---|---|---|---|---|---|
| Nominal | 3.2 | 12.8 | 25.6 | 51.2 | Datasheet “nameplate” value |
| Recommended full (resting) | ~3.45 | ~13.8 | ~27.6 | ~55.2 | After charge terminates & settles |
| Maximum charge (absolute) | 3.60–3.65 | 14.4–14.6 | 28.8–29.2 | 57.6–58.4 | Charging limit – don’t exceed |
| Minimum operating | ~2.8 | ~11.2 | ~22.4 | ~44.8 | Short dips OK, not for storage |
| BMS cutoff region | 2.5–2.8 | 10.0–11.2 | 20.0–22.4 | 40.0–44.8 | Exact value depends on BMS |
Key points:
- Nominal voltage is just a reference; the battery almost never sits exactly at 3.2V/cell.
- For best life, most designers avoid staying near maximum voltage for long and keep daily operation roughly in 10–90% SOC.
- Deep discharges to BMS cutoff are OK occasionally but will reduce cycle life if repeated often.
What Is the Recommended LiFePO4 Charging Voltage?
Different manufacturers give slightly different numbers, but for most LiFePO4 packs:
Bulk/absorption (constant-voltage stage)
| System | Typical Bulk / CV Voltage | Comment |
|---|---|---|
| 12V LiFePO4 | 14.2–14.4V | Common setting for solar charge controllers |
| 24V LiFePO4 | 28.4–28.8V | 2 × 12V values |
| 48V LiFePO4 | 56.8–57.6V | 4 × 12V values |
- This corresponds to about 3.55–3.60V per cell.
- When charge current tapers below a set threshold, the charger normally stops the absorption stage.
Float voltage
Many LiFePO4 manufacturers either:
- Recommend no float at all (charger disconnects when full), or
- Suggest a low float around 13.4–13.6V for 12V packs (~3.35V per cell).
If your charger is designed around lead-acid, disable equalization and set:
- Float as low as the controller allows for LiFePO4, or use “no float” / “lithium” mode.
Why charging voltage matters
- Running at the very top end (3.65V/cell) every cycle squeezes out a bit more capacity but reduces cycle life.
- Slightly lower bulk voltage (for example 14.0V instead of 14.4V on 12V) may sacrifice 1–2% capacity but is gentler on the cells.
- Never exceed the manufacturer’s max charge voltage—this can cause swelling, venting, and permanent damage.
How to Use LiFePO4 SOC Charts in Solar, RV and Backup Systems
Here’s a simple workflow using a LiFePO4 SOC chart in real life:
- Charge or discharge normally, then disconnect large loads and chargers.
- Wait 30–60 minutes for the voltage to settle (or longer after heavy current).
- Measure pack voltage at the battery terminals with a digital multimeter or monitor.
- Look up the value in the 12V / 24V / 48V LiFePO4 voltage chart above.
- Combine with recent current history:
- If you just discharged heavily, actual SOC may be a bit higher than the chart shows.
- If you just charged heavily, actual SOC may be a bit lower than the high surface voltage suggests.
Example scenarios:
- Off-grid solar cabin (48V)
- Morning resting voltage: 51.8V → roughly 50–60% SOC → plenty of room for solar charging.
- RV house battery (12V)
- Evening voltage under light load: 12.6V → maybe 30–40% SOC → consider starting generator if you need all night AC loads.
- UPS / backup power (24V)
- After an outage, pack settles at 25.2V → around 30% SOC → recharge as soon as mains returns.
Once you install a smart BMS or battery monitor that counts amp-hours, use voltage charts as a sanity check and for early fault detection (cells drifting, high internal resistance, etc.).
What Are the Most Common LiFePO4 Voltage Mistakes?
Even experienced users make these voltage-related mistakes:
- Using lead-acid voltage charts for LiFePO4
- Lead-acid shows a steep, linear drop; LiFePO4 is flat. Lead-acid numbers (12.0V = “dead”) do not apply.
- Judging SOC under heavy load
- A 12V LiFePO4 pack at 12.3V under a 1C load might still be 40–50% SOC once it rests.
- Storing batteries at 100% for months
- Long-term storage at full voltage (13.6–14.4V for 12V) slowly stresses the cells. 40–60% SOC at cool temperature is ideal.
- Regularly hitting BMS low-voltage cutoff
- Treat BMS cutoff as an emergency brake, not a daily limit. Design capacity so typical use stays above ~10–20% SOC.
- Over-voltage from incompatible chargers
- Automotive alternators and old lead-acid chargers may push 15–16V on a 12V pack. Without proper DC-DC or BMS control, this can damage LiFePO4.
How Do You Measure LiFePO4 Battery Voltage Correctly?
For consistent readings from your LiFePO4 battery voltage chart, follow these steps:
- Use the right tool
- A reliable digital multimeter or a calibrated battery monitor. Avoid cheap dashboard “cigarette lighter” meters for precise SOC checks.
- Measure at the battery terminals
- Voltage drops on long cables and connectors can mislead you, especially under load.
- Let the battery rest
- After charging or discharging at high current, let it rest 30–60 minutes so surface charge dissipates.
- Record temperature
- Voltage shifts a little with temperature. Charts are usually given around 20–25°C; at very low temperatures the resting voltage can be slightly higher.
- Compare with both cell and pack charts (if accessible)
- For large banks, also check individual cell voltages to spot imbalance: one cell much lower or higher than the others is a red flag.
